The newest LCD info panel with Usb4All

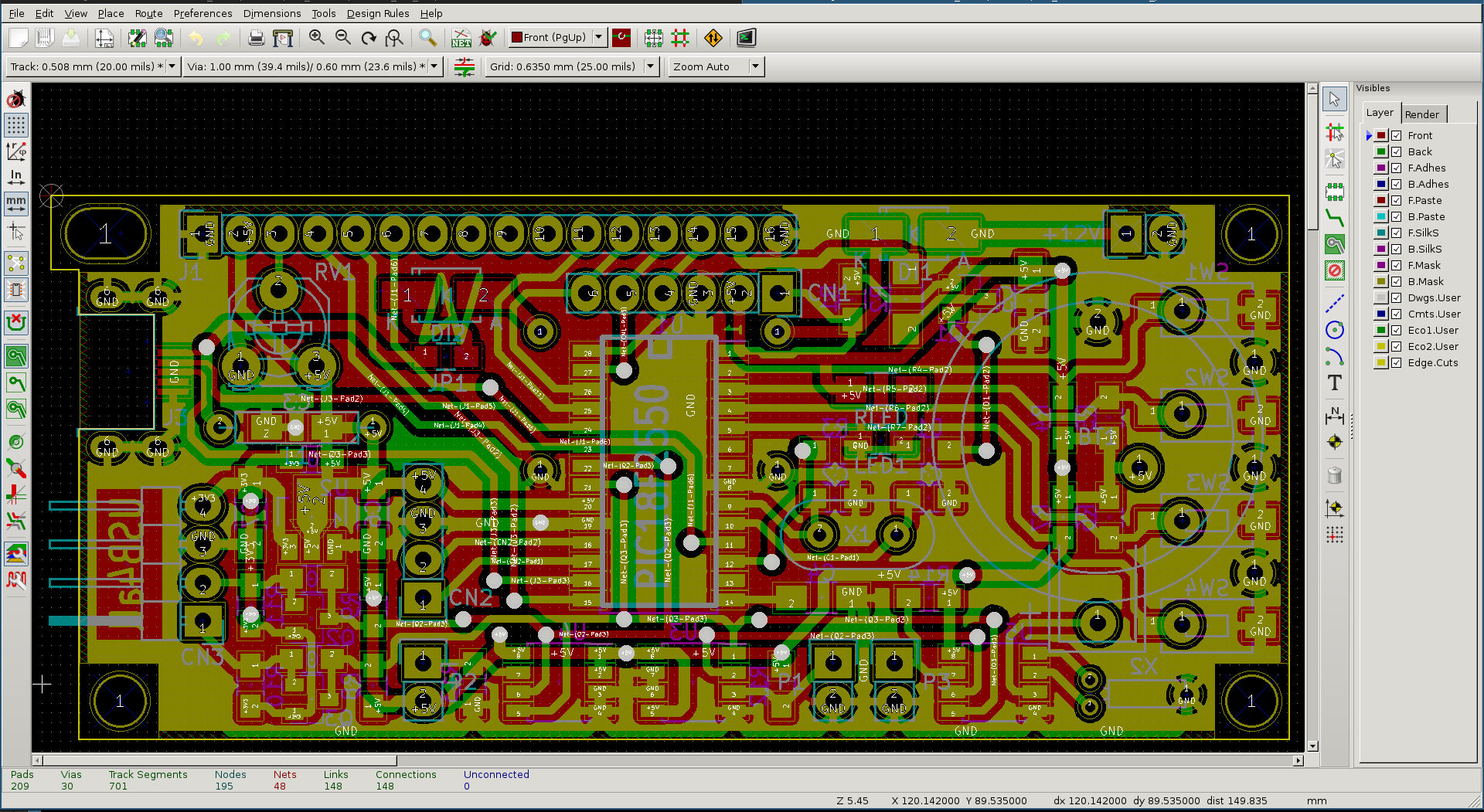

The newset PCB

click for full size image! click for full size image!

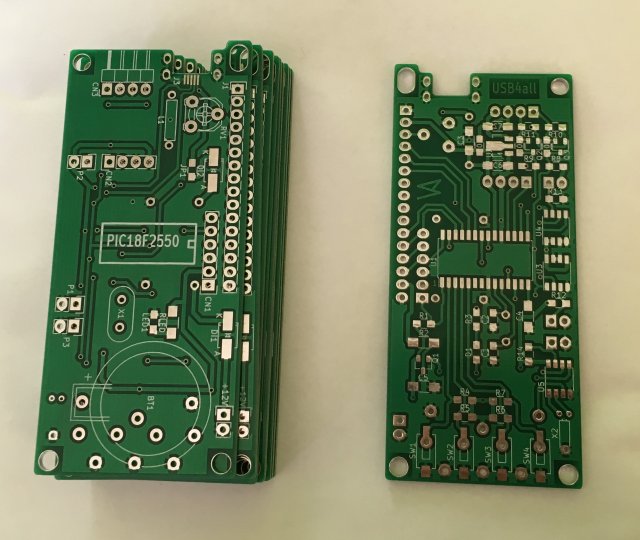

Two prototype models have been made. One of them has a temperature measuring extension with LM75a integrated circuit. The other has four switches and a dedicated clock chip (DS1307) with battery holder. You can see them with the first version of PCB:

click for full size image! click for full size image!

Communication with I2C circuits

There is a problem with the Usb4All firmware: it can not communicate in I2C bus with 'restart mode'. The I2C protocol can change parameters in some chips (i.e. LM75a) with this mode, so I think I must modify the firmware some time or other.

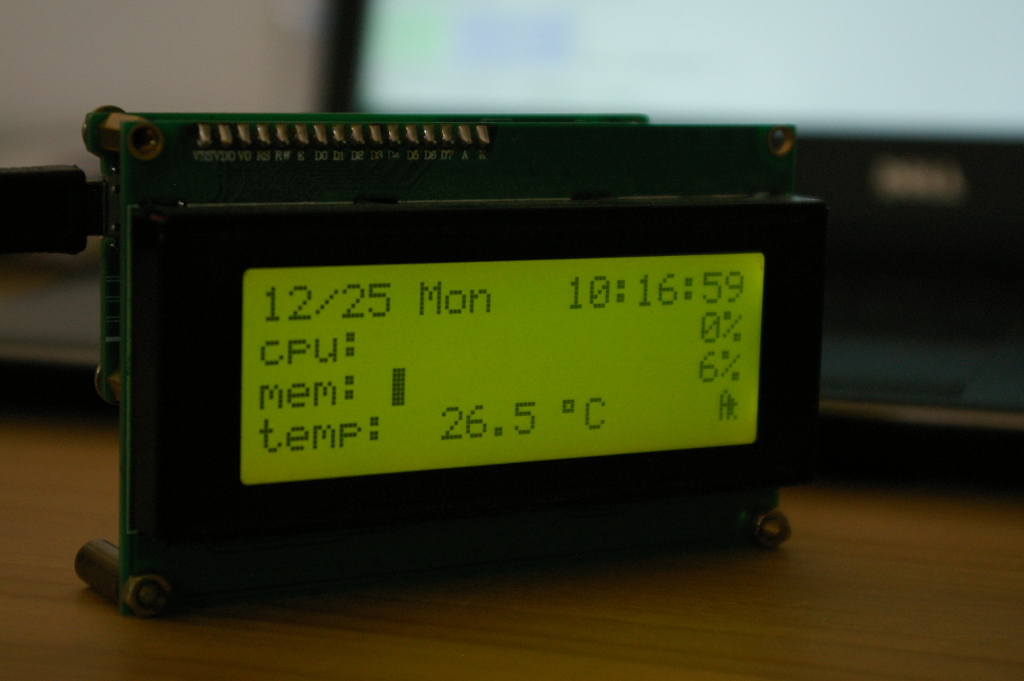

As you can see, the panel can show actual ambient temperature too. The newest Debian 9 package is here.
